Digital Up / Down Counter Module
-
Buy 10 for
$8.05
each and save 10%
Overview
1 Digit Up / Down Counter with Start / Preset point counter.
Fully Assembled & Tested Module
- Display dimensions : 1.59 x 1.29 inches
- PCB dimensions : 1.59 x 3.36 inches
- Recommended Housing : FB04
- Power supply : 5 to 12 VDC/max. 80 mA. at 12 VDC
- For use with external display, common anode or common cathode.(jumper selectable)
- UP / DOWN counter selection.
- Maximum input frequency (CI) : 15 KHz .
- Start / Preset point counter.
- A reset is available to reset the entire counter to zero.
- Select to display the decimal point.

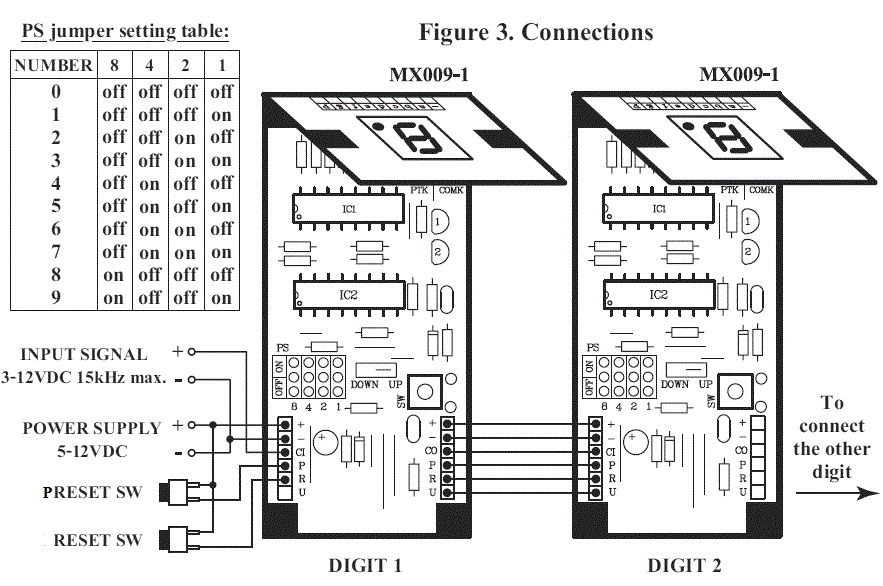

- Displays can be daisy-chained to one another to form larger numbers.
- Use the MX008 to drive larger displays.
- You can add external switches to allow setting of a preset number.

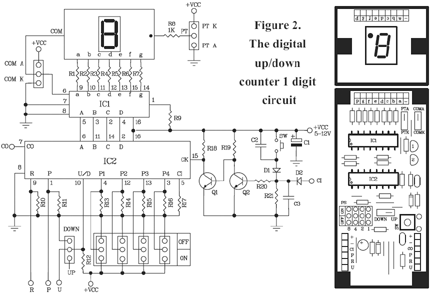

- Uses a 4543 display driver and 4510 CMOS counter.
