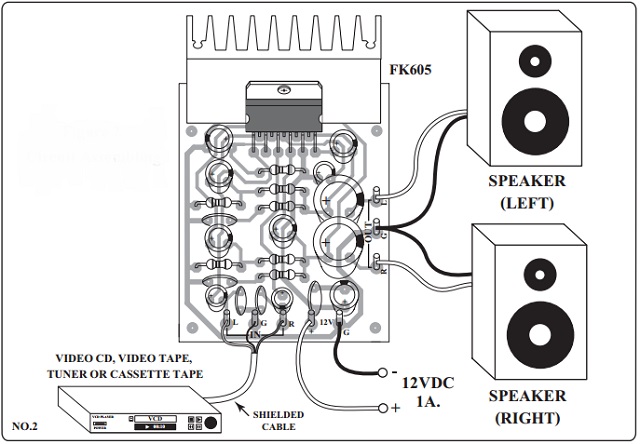

This power amplifier 8+8 watt (STEREO) circuit is designed to have only 1 IC to for ease of system development.
IC TDA2004 is specially selected to be used for amplifying both left and right channels.
This particular IC has protective circuits inside and is popularly used for car radio for many brands.
Specification: - supply voltage : 12 VDC / more than 1A.
- music power output : 8W / 4ﾩ
- signal/noise ratio : 80 dBA.
- input sensitivity : 150mV / 200kﾩ
- frequency response : 20Hz to 20kHz (-3dB)
- Gain : 30dB. max.
- total harmonic distortion (THD) : 0.1% @ 1W, 4ﾩ
- overload and short-circuit protected
- dimension : 2.36 x 2.90 inches.
